HOW TO' Aces II Ejection Seat   by  Chris "SpeedOne" Van Lierop                  Page 2

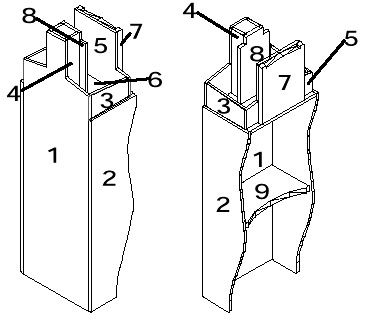

Here you see the back part of the seat with the main components coming together

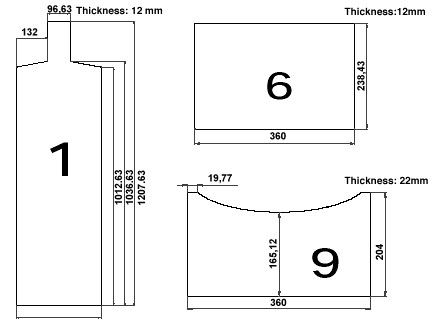

Here are the dimensions of the different parts (not in scale!!) Sizes are all in mm. So if you live in one of the
last countries using inches and other strange measurement systems.....You’ll have to calculate a bit ;-)
